XD080B120BV1S3 芯达茂SiC MOS管

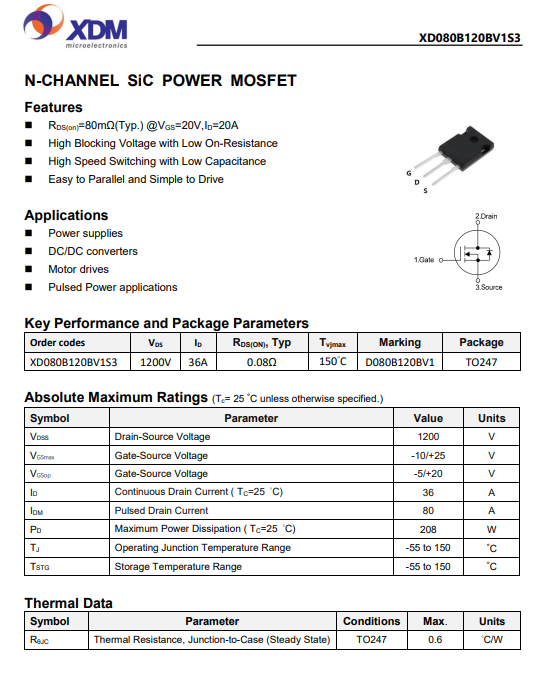

XD080B120BV1S3 80mohm 1200V TO-247 3L
Features
◼ RDS(on)=80mΩ(Typ.) @VGS=20V,ID=20A
◼ High Blocking Voltage with Low On-Resistance
◼ High Speed Switching with Low Capacitance
◼ Easy to Parallel and Simple to Drive
Applications
◼ Power supplies
◼ DC/DC converters
◼ Motor drives
◼ Pulsed Power applications
