芯达茂XD040H120AT1S3国产IBGT +FRD单管 40A 1200V TO-247-3L
40A 1200V TO-247-3L
24小时全国服务热线：18902855590
24小时全国服务热线：18902855590

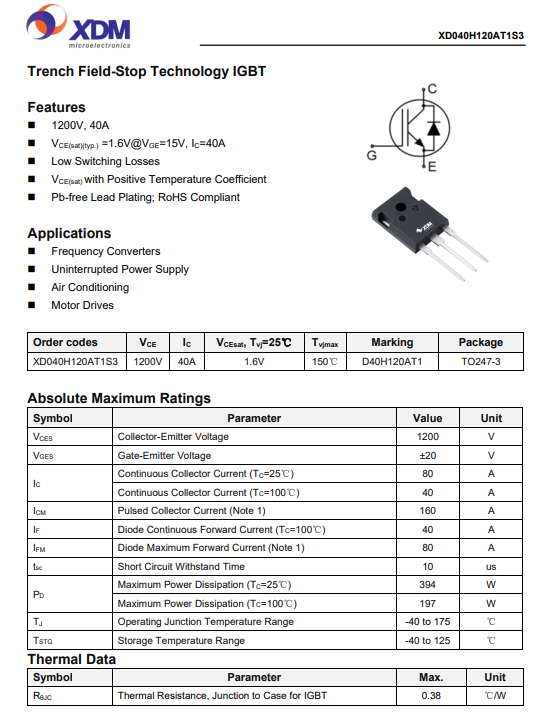

芯达茂XD040H120AT1S3
Trench Field-Stop Technology IGBT Features
◼ 1200V, 40A
◼ VCE(sat)(typ.) =1.6V@VGE=15V, IC=40A
◼ Low Switching Losses
◼ VCE(sat) with Positive Temperature Coefficient
◼ Pb-free Lead Plating; RoHS Compliant Applications
◼ Frequency Converters
◼ Uninterrupted Power Supply
◼ Air Conditioning
◼ Motor Drives
