XD040Q065AY1S3芯达茂 国产IBGT +FRD单管 40A 650V TO-247-3L
40A 650V TO-247-3L
24小时全国服务热线：18902855590
24小时全国服务热线：18902855590
XD040Q065AY1S3芯达茂

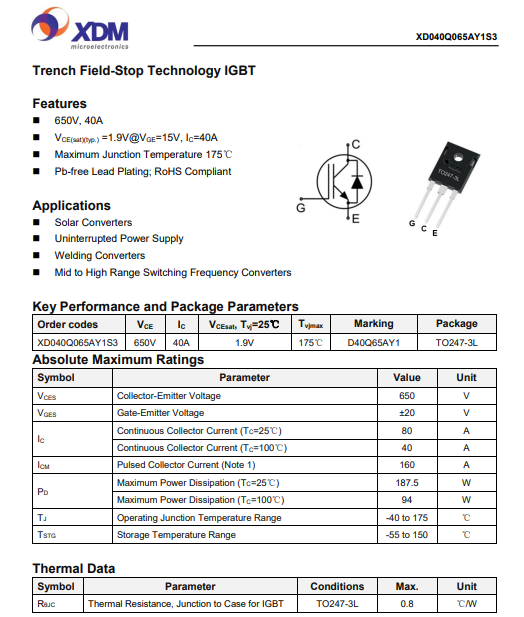

Features
◼ 650V, 40A
◼ VCE(sat)(typ.) =1.9V@VGE=15V, IC=40A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters
