XD075Q065AY1S3 芯达茂

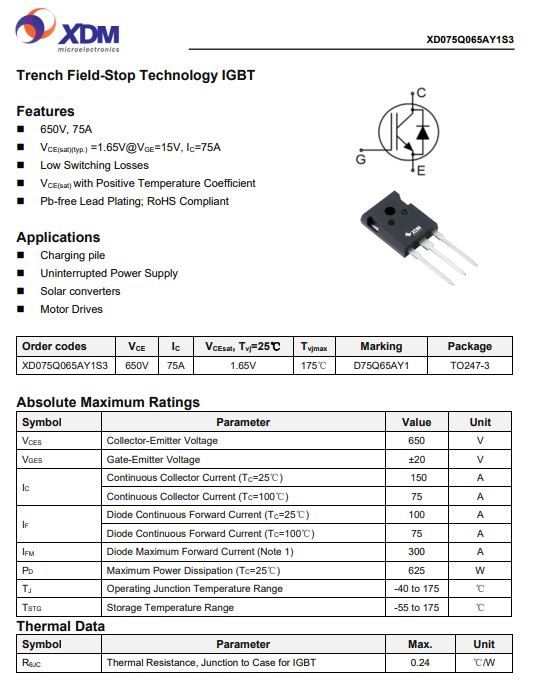

Trench Field-Stop Technology IGBT Features
◼ 650V, 75A
◼ VCE(sat)(typ.) =1.65V@VGE=15V, IC=75A
◼ Low Switching Losses
◼ VCE(sat) with Positive Temperature Coefficient
◼ Pb-free Lead Plating; RoHS Compliant Applications
◼ Charging pile
◼ Uninterrupted Power Supply
◼ Solar converters
◼ Motor Drives
