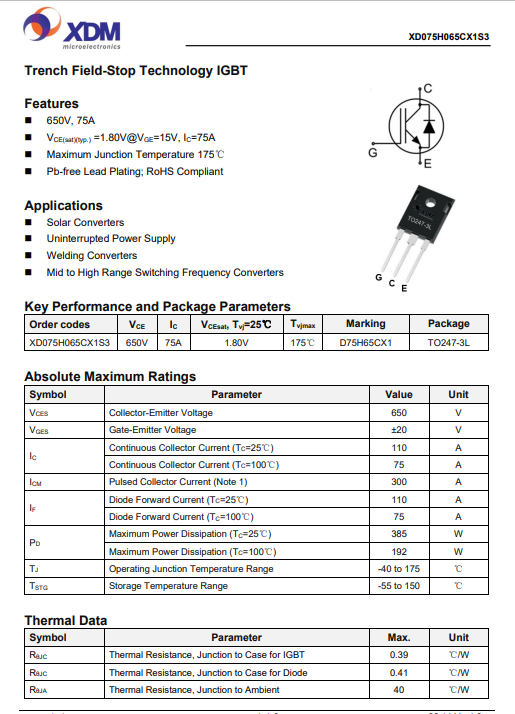

XD075H065CX1S3芯达茂 国产IBGT +FRD单管 75A 650V TO-247-3L
75A 650V TO-247-3L
24小时全国服务热线：18902855590
24小时全国服务热线：18902855590
XD075H065CX1S3芯达茂
Features
◼ 650V, 75A
◼ VCE(sat)(typ.) =1.80V@VGE=15V, IC=75A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters
